.101" Micro Jacks and Plugs

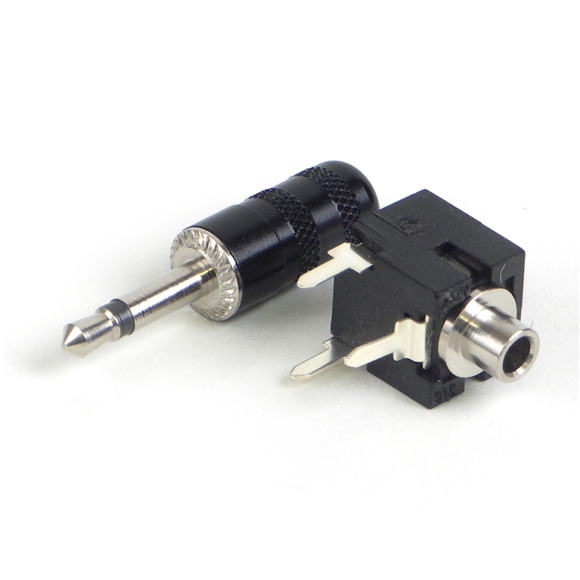

Extremely small, rugged, shunted Micro-Jax 2-conductor jack is 1/4 the size of a standard phone jack and weighs less than 1/20 ounce. The micro jacks can be wired for open or closed circuit operation. Internally keyed insulators interlock all parts and tip springs grip mating plugs positively. Mates with Switchcraft Micro-Plug phone plugs. Jacks mount through 0.190" diameter hole in chassis/panels up to .093" thick. For insulated mounting, a .281" diameter hole and .050" maximum panel thickness applies. Order insulating washer separately. Number P1617 (flat phenolic washer) and Number P1618 (swedged fiber washer).
Key Features
Extremely small, rugged, shunted Micro-Jax 2-conductor jack is 1/4 the size of a standard phone jack.
They are rated for at least 10,000 insertion/ withdrawal cycles
Made in USA to the high standards that have made Switchcraft the leading name in jacks and plugs
Configuration
-
Product Line:
Micro-Jax
-
Standard Connector Type:
0.101" [2.56mm]
Electrical
-
Contact Resistance:
0.01 Ohms
-
Insulation Resistance:
10000 MOhms
-
Current Rating:
0.125 Amps
Mechanical
-
Life Cycle:
10000 Cycles
-
Operating Force:
0.68 lbs
Environmental
-
Temperature Range:
-55C to +85C
-
Humidity Rating:
MIL-STD-202 Method 106
-
Salt Spray:
MIL-STD-202 Method 101
-
Mechanical Shock:
MIL-STD-202 Method 107
-
Maxiumum Temperature:
85 C
Compliance
-
RoHS Compliant:
Compliant
-
REACH Compliant:
1
-
Brand:
Switchcraft
