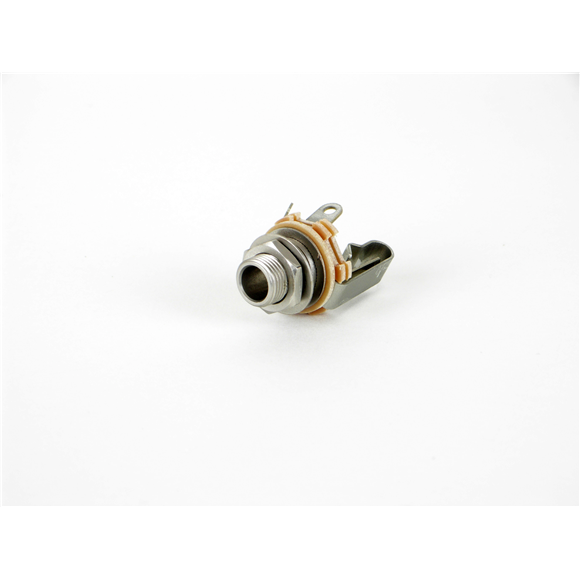

1/4" Mono 2 Conductor Jack w/Nut & Washer, Isolated Make Circuit

In stock
Drawings:


Buy Now

View More From This Family

Configuration

  • Number of Conductors: 2
  • Product Line: Littel Jacks
  • Mounting Type: Panel
  • Termination Style: Solder
  • Contact Plating: Nickel
  • Locking: Locking
  • Sealed: Not Sealed
  • Packaging Type: Bulk
  • Standard Connector Type: 1/4" Phone Jacks & Plugs
  • Shunt: Shunted
  • Jack-Plug Type: Jack
  • Special Feature: Open Frame

Electrical

  • Contact Resistance: 0.03 Ohms
  • Dielectric Withstanding Voltage: 500 Volts
  • Insulation Resistance: 10000 MOhms
  • Voltage Rating: 25 Volts
  • Current Rating: 1 Amps
  • Circuit-Schematic: Isolated Make Circuit

Mechanical

  • Life Cycle: 10000 Cycles
  • Operating Force: 7 lbs
  • Coupling Locking Style: Threaded
  • Panel Thickness: 0.156 in

Environmental

  • Temperature Range: -55C to +85C
  • Shielding: Unshielded
  • Humidity Rating: MIL-STD-202 Method 106
  • Moisture Resistance: MIL-STD-202 Method 106
  • Salt Spray: MIL-STD-202 Method 101
  • Minimum Temperature: -55 C
  • Maxiumum Temperature: 85 C

Compliance

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Material

  • Body Material: Copper Alloy
  • Body Plating: Nickel
  • Contact Material: Copper Alloy
  • Insert Material Type: Rigid Plastic Insulating Spacers
  • Terminal Material: Copper Alloy
  • Spring Material: Copper Alloy
  • Sleeve Material: Copper Alloy
