Switchcraft

172

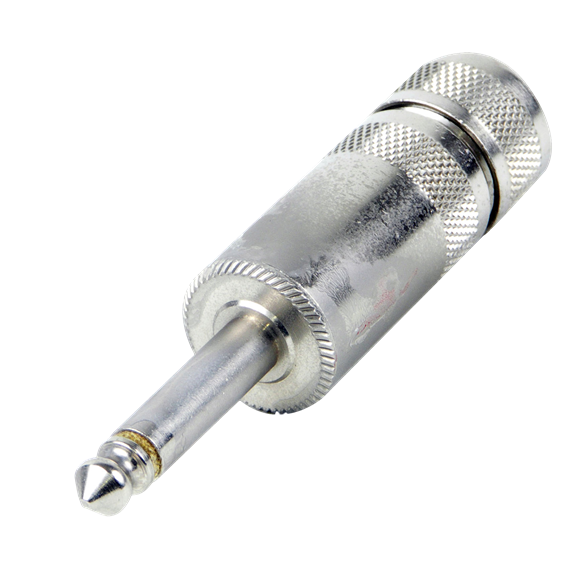

1/4" Mono 2 Conductor Cable Mount Silent Plug - Compression Sealed Nut - Screw Terminals

In stock
Drawings:


Buy Now

View More From This Family

Configuration

  • Number of Conductors: 2
  • Product Line: Littel Plugs
  • Mounting Type: Cord
  • Mounting Feature: Compression Sealed Nut
  • Termination Style: Screw Terminals
  • Contact Plating: Nickel
  • Color: Nickel
  • Sealed: Not Sealed
  • Handle Material: Brass
  • Packaging Type: Assembled
  • Standard Connector Type: 1/4" Phone Jacks & Plugs
  • Jack-Plug Type: Plug
  • Special Feature: Silent Plug

Environmental

  • Shielding: Shielded

Compliance

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Dimensional

  • Cable Opening: 0.25 in

Material

  • Body Material: Copper Alloy
  • Body Plating: Nickel
  • Contact Plating Type: Nickel
  • Terminal Material: Copper Alloy Tinnned
