Switchcraft

M114BX

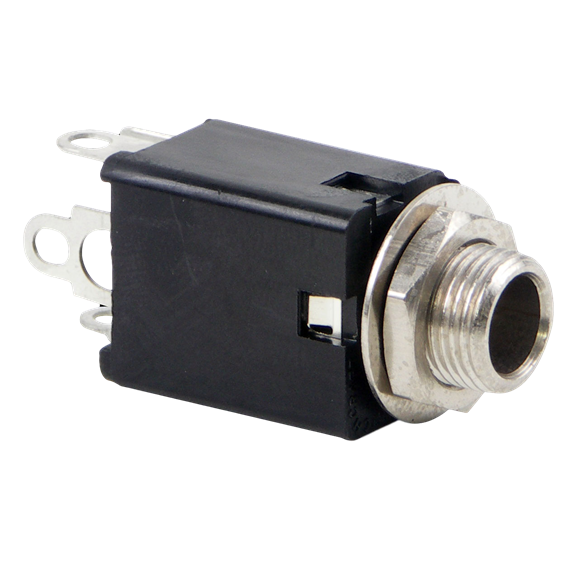

1/4" MIL-Type Enclosed Jack, .25 inch I.D. sleeve, metal bushing, solder lugs

In stock
This item is special order
Drawings:


Buy Now

View More From This Family

Configuration

  • Number of Conductors: 3
  • Mounting Type: Panel
  • Termination Style: Solder
  • Contact Plating: Gold
  • Sealed: Not Sealed
  • Packaging Type: Bulk
  • Number of Stations: 1
  • Standard Connector Type: MIL-Type Jacks & Plugs
  • Shunt: Shunted
  • Jack-Plug Type: Jack

Electrical

  • Circuit-Schematic: Double Closed

Environmental

  • Temperature Range: -55C to +85C
  • Flame Rating: UL 94V-0
  • Minimum Temperature: -55 C
  • Maxiumum Temperature: 85 C

Compliance

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Material

  • Insert Material Type: Thermoplastic
  • Terminal Material: Steel
  • Spring Material: Palladium
