Switchcraft

157

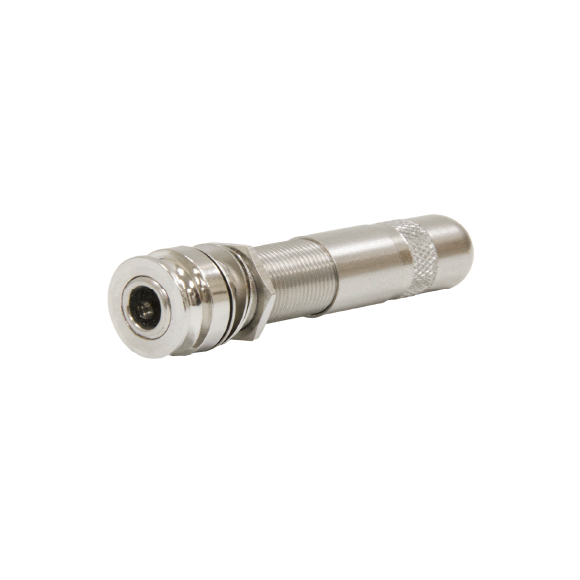

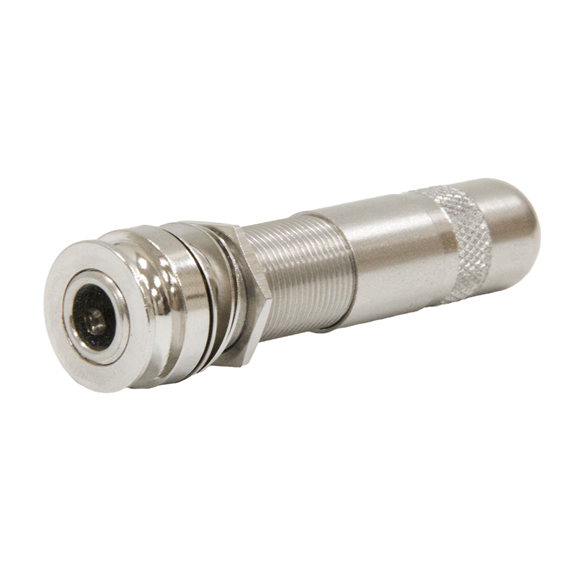

1/4" Stereo Thick Panel Mount Jack w/Cable Clamp, Handle and Strap Nut, Nickel Finish

In stock
Drawings:


Buy Now

View More From This Family

1/4 strap nut end-pin jacks offer the same trusted quality of a Switchcraft end-pin jack, plus the added functionality of a removable strap nut. This is ideal for acoustic guitar applications, eliminating the need to drill a second hole into the instrument for an output jack. The included handle and cable clamp ensure critical connections are protected, perfect for both OEM pickups or customizations. All hardware is included for easy installation.

Configuration

  • Number of Conductors: 3
  • Product Line: Littel Jacks
  • Mounting Type: Panel
  • Mounting Feature: Special Strap Nut
  • Termination Style: Solder
  • Contact Plating: Nickel
  • Color: Nickel
  • Locking: Non-Locking
  • Sealed: Not Sealed
  • Packaging Type: Bulk
  • Standard Connector Type: 1/4" Phone Jacks & Plugs
  • Jack-Plug Type: Jack
  • Special Feature: Thick Panel "End Pin" Jack

Electrical

  • Current Rating: 1 Amps
  • Circuit-Schematic: Single Open

Mechanical

  • Panel Thickness: 1.25 in

Environmental

  • Temperature Range: -55C to +85C
  • Shielding: Unshielded
  • Minimum Temperature: -55 C
  • Maxiumum Temperature: 85 C

Compliance

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Material

  • Body Material: Copper Alloy
  • Body Plating: Nickel
  • Contact Material: Copper Alloy
  • Insert Material Type: Rigid Plastic Insulating Spacers
  • Terminal Material: Copper Alloy
  • Spring Material: Copper Alloy
  • Sleeve Material: Steel
