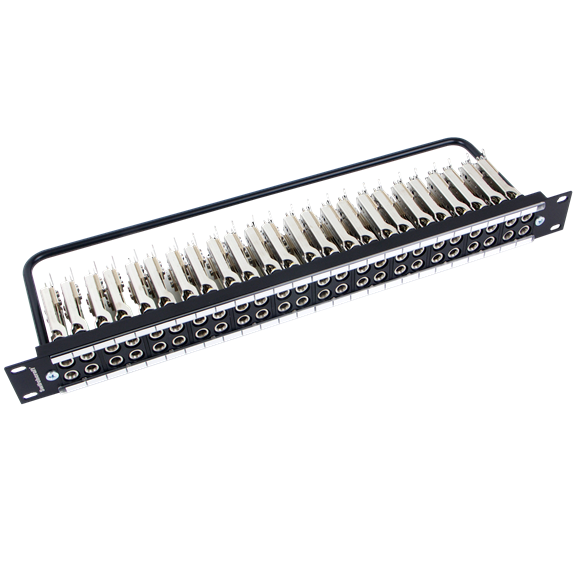

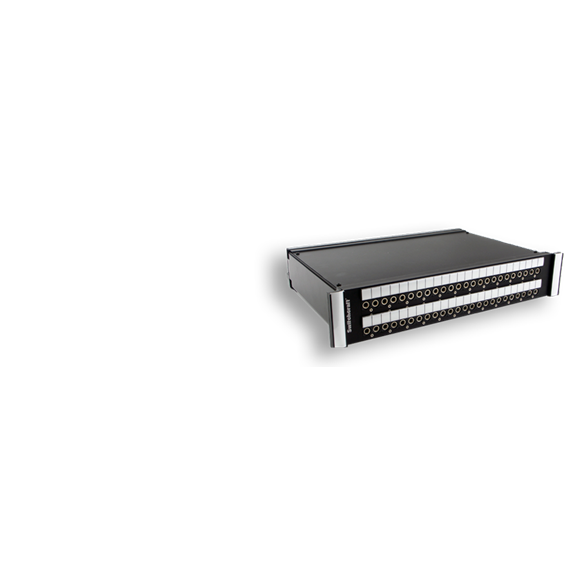

1/4" [6.35mm] Long Frame Patch Panels
1/4" long frame patchbay solutions designed for seamless integration into any professional audio system. Standard 1/4" long frame patchbays include a wide range of chassis, normalling, rack height and rear panel connection options including solder lug, EDAC and PPT Punchdown.
Key Features
1/4" long frame patchbay solutions designed for seamless integration into any professional audio system.
Patchbays include a wide range of chassis, normalling, rack height and rear panel connection options including solder lug, EDAC and PPT Punchdown
Patchbays are built in our Switchcraft factory in Chicago to the highest quality standards
Configuration
-
Number of Conductors:
2
-
Contact Plating:
Gold
-
Color:
Black
-
Packaging Type:
Box
-
Standard Connector Type:
MIL-Type Jacks & Plugs
-
Front Connector:
MT Style Jacks
Electrical
-
Contact Resistance:
0.03 Ohms
-
Dielectric Withstanding Voltage:
500 Volts
-
Insulation Resistance:
1000 MOhms
-
Voltage Rating:
140 Volts
-
Current Rating:
0.1 Amps
Mechanical
-
Life Cycle:
30000 Cycles
-
Operating Force:
7 lbs
Compliance
-
RoHS Compliant:
Compliant
-
REACH Compliant:
Compliant
-
Brand:
Switchcraft
Material
-
Contact Material:
Gold Alloy
-
Spring Material:
Copper Alloy
