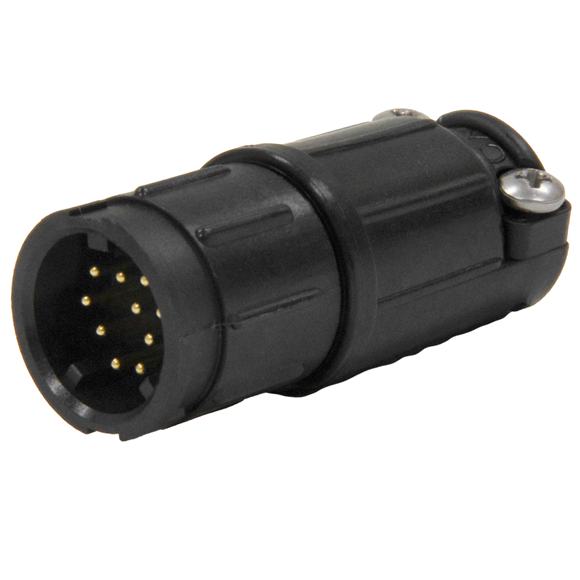

528x-10pg-5xx
Enlarge
528x-10pg-5xx
  • There are no alternate images available for this product.

  •
Conxall

W5282-10PG-535

Cable-to-Cable, Solder, 10-pin, Large Backshell, 0.83" [21.1mm] Grommet I.D.

In stock
Drawings:


Buy Now

View More From This Family

Configuration

  • Number of Conductors: 10
  • Product Line: Multi-Con-X
  • Mounting Type: In-Line
  • Gender: Male
  • Contact Size: 20 AWG
  • Termination Style: Solder Cup
  • Contact Plating: Gold
  • Color: Black
  • Locking: Locking
  • Sealed: Sealed
  • Handle Material: Thermoplastic
  • Insert Material: Thermoplastic
  • Packaging Type: Bulk
  • Backshell Style: Long
  • Winged Coupling Ring: Not Winged

Electrical

  • Voltage Rating: 600 Volts
  • Current Rating: 5 Amps

Mechanical

  • Life Cycle: 300 Cycles
  • Coupling Locking Style: Bayonet
  • Mounting Torque: 10 in-lbs

Environmental

  • Temperature Range: -40?C to +85?C
  • Shielding: Unshielded
  • Flame Rating: UL 94V-0
  • Salt Spray: 300 Hr salt spray when mated
  • Minimum Temperature: -40 C
  • Maxiumum Temperature: 85 C

Compliance

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Conxall
  • IP Rating: IP67
  • UV Rating: F1
  • IP65: 1
  • IP66: 1
  • IP67: 1
  • Current Interruption: Not for Current Interruption

Dimensional

  • Outer Diameter: 0.875 in
  • Cable Opening: 0.4 in

Material

  • Body Material: Thermoplastic
  • Contact Material: Copper Alloy
  • Contact Plating Type: Gold
  • Insert Material Type: UV Resistant
  • O-Ring Material: Elastomer
  • Hardware Material: Stainless Steel
